FOSSiBOT F101P 123dB Speaker 10600mAh Large battery 7GB+64GB Android 13 Rugged Phone

Height:155.7mm

Width:76.2mm

Thickness:20.35mm

Weight:≈ 350g

*Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product.

Capacity: 10600mAh

Fast Charging: 18W

Material: Built-in lithium-ion polymer

Voltage: 4.4V

Standby Time: 816H(With SIM)

Music: 145Hrs

Calling: Calling (Screen Off): 50H

* The endurance data comes from the FOSSiBOT laboratory

Processor: MediaTek Helio P22

CPU: MT8768V

CPU Core Count: Octa-core Chipset

Process Node: 12 nm

CPU Framework: 8*Cortex -A53 2.0GHz

GPU: IMG GE8320 650MHz

RAM & ROM：4 GB + 64 GB

RAM Type: LPDDR4X

ROM Type: UFS

Expandable RAM Capacity: 3GB

Expandable ROM Capacity: Up to 128GB

Memory card type: T-flash card

Card Slot: 2 nano SIMs (SIM1 + SIM2) or 1 nano SIM+TF Card

Size: 5.45” inch

Screen color : 16.7M

Resolution: 720*1440 (HD+)

Aspect ratio: 18:9

Pixel density: 295PPI

Screen brightness: 400cd/m²(MIN),440cd/m²(TYP)

Screen-to-body ratio: 77%

Touch Screen: In-Cell Touch

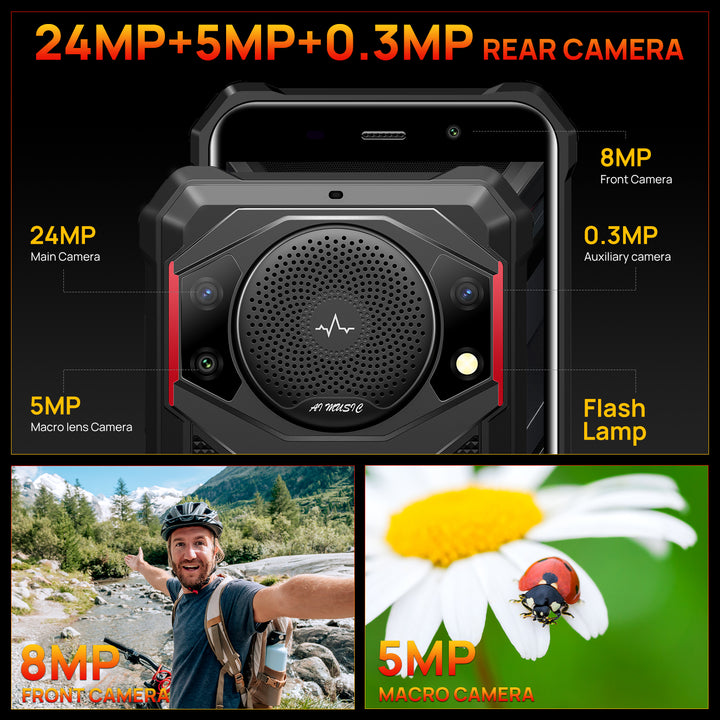

Rear Cameras

24MP AF Main Camera

5MP

0.3MP

Optical dimension: 5P

Aperture: F2.2+/- 5%

Pixel area: 4032*3024

Sensor type: 82°

Function: Video/Picture/Beauty/Mono/Bokeh/pro/Night

Front Camera

8MP

Optical dimension: 1/3.2inch

Aperture: F2.2±5%

Sensor type: 78°

Function: Video/Picture/ Face ID

Rear Camera Video Features

Video/Picture/BeautyMono

Water，Dust，And Shockresistant

IP68,IP69K,MIL-STD-810H

*This device has been tested in a controlled environment and certified to bewater, dust,and shock resistant in specific situations.

WLAN

Supports protocols: 2.4G 802.11b/g/n ,  5G 802.11a/n

Bluetooth

Supports Bluetooth 5.0

Supports HA

Supports FM

Supports OTG

*FM: Plug in headphones to support external playback
*OTG: Supports reverse charging

*To use the FM function on your smartphone, a virtual headset is required as an antenna. Please purchase a virtual headset separately.

Supports multiple positioning systems

GPS

GLONASS

Beidou

Galileo

G-Sensor;

Geomagnetism;

Compass sensor;

Proximity Sensor;

Ambient Light Sensor;

Gyroscope;

Video

AVI,MP4,WMV,RMVB,MKV,MOV,ASFRM,FLV

Audio

MP3,AAC.WAV.FLAC,WMA,OGG


GIF,JPEG,PNG,BMP

Ebook

TXT,HTML

Supports use of dual SIM cards from different carriers

Supported network bands

GSM,GPRS,EDGE,WCDMA,LTE

Global Version:

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B4/B5/B8

FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17
B18/B19/B20/B25/B26/B28A/B28B/B66

TDD: B38/B39/B40/B41

Eurasian:

GSM: B2/B3/B5/B8

WCDMA: B1/B8

FDD:B1/B3/B7/B8/B19/B20

TDD: B38/B40/B41

Support EDGE/GPRS

Software Toolbox

Compass, Gradienter, Pic Hangin, SoundMeter, Magnifier, HeightMeasure,Warning, Protractor, Plumb Bob

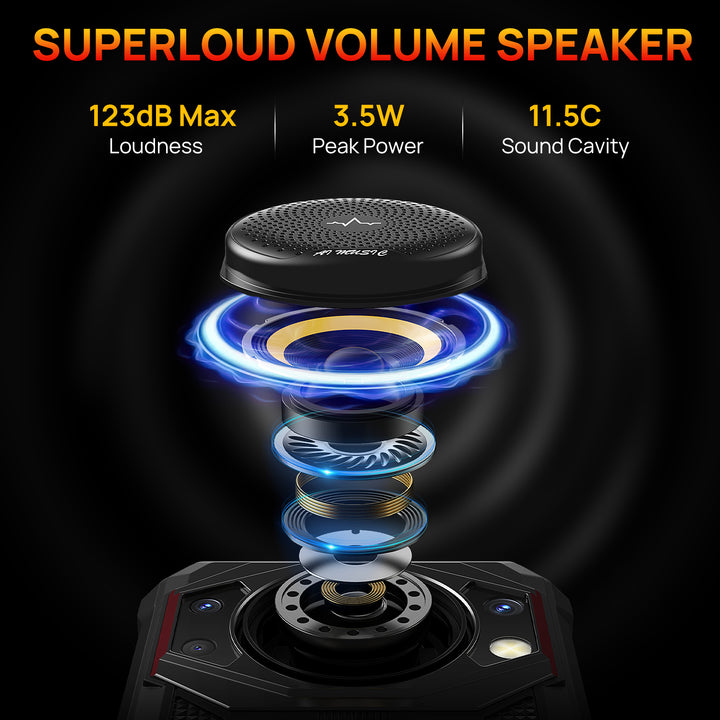

123db Max Loudness

3.5W Peak Power

11.5CC Sound Cavity

Supports Fingerprint Unlock

Supports Face Unlock

USB interface type: Type-C

USB version: USB 2.0

Headphone jack type: Type-C

SIM card type: Nano-SIM card

Whether to support dual SIM card: support

*Nano SIM+Nano SIM OR Nano SIM+TF Card

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), ltalian, German,

French, Russian,Arabic, Malay, Thai, Greek, Ukrainian, Croatian, Czech,

Simplified Chinese, Traditional Chinese,Japanese.(lt has updated 48 languages)

Android 13
